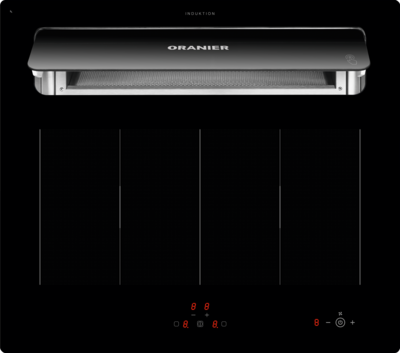

FlexX-induction-hob with integrated cook top extractor (frameless) KXI 1062 Basic-PLUS

This model offers 4 installation variants

• Flush-mounted
• Fitted on the worktop
• Fitted on the worktop with side rails in stainless steel or pureBLACK
• Fitted on the worktop with frame in stainless steel or pureBLACK

Control

Touch-Control

Safety

• Child safety lock
• Overflow protection
• Overheating protection
• Safety function "small objects"
• Residual heat indicator
• Operating time limit

Features

• Red display indicators
• 10 power levels per cooking zone (9 cooking levels, 1 booster level)
• 2-fold booster
• 1 double booster
• 2 timers (max. 99 minutes each)
• Short-time alarm
• Pot recognition
• Pot size detection
• Bridge circuit (adjacent cooking zones can be bridged to form the FlexX zone))

2 induction cooking zones

• right 230 x 230 mm: 1.85 kW
• left 230 x 230 mm: 3 kW
• FlexX zone 473 x 229 mm: 3.7 kW

Attention! Do not assemble above built-under-units (e.g. dishwasher or fridges) or corner cupboard in case of a flush mount assembling, the device can be opened from the bottom. The glass surface needs not to be disassembled.

Features extractor hood

Control

Touch-Control (integrated to hob)

Power levels

3 normal levels, 1 intensive level

Special features

• LED display red (integrated in hob)
• Extraction flap closes flush with glass ceramic
  - easy cleaning and continuous surface
• Automatic motor stop system when the extraction
  extraction flap closed
• Integrated drip tray (holds up to 0.5 l of liquid)
• Automatic run-on
• Child safety lock
• Grease filter cleaning indicator
• 2-piece metal grease filter inside and dishwasher safe

Exhaust air spigot

» Ø 150
» Set to extract air mode at the factory
» U ml air operation possible (insert for professional activated carbon filter P 220/AFP 220 available)
» Profi activated charcoal filter P 220/AFP 200 is not included in the scope of delivery.
