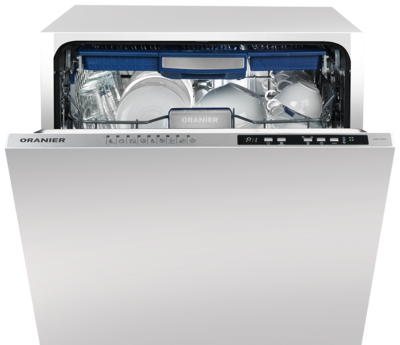

Fully integrated dishwasher GAVI 7592 88

Features

  • 9 programmes with electronic operation via soft buttons
  • ECO 45°C, 254 min.
  • HygienePRO 70°C, 127 min.
  • Gastro50 65°C, 50 min.
  • Short 30°C, 14 min.
  • Glasses 40°C, 30 min.
  • SteamPLUS 70°C 161 min.
  • DuoPRO 60°C 113 min.
  • Auto 50 - 70°C 109 - 179 min.
  • Auto 30 - 50°C 72 - 91 min.
  • Additional functions (selection and activation depends on
    depending on the selected programme):
    - Extra-dry
    - Extra-quiet
    - Extra-fast


Convenience functions

  • 15 place settings
  • Cutlery drawer
  • Cutlery basket
  • Height-adjustable upper basket with LiftmatikPLUS
  • Folding crockery racks in the upper basket
  • Folding side shelf in the upper basket
  • Folding plate holders in the lower basket
  • All-round stainless steel inner container
  • LED interior lighting
  • floorLIGHT
  • Delayed start 1 - 19 hours
  • Remaining time display
  • Electronic salt indicator
  • Electronic rinse aid indicator
  • 3 spray levels
  • Selection of wash levels (upper basket/lower basket)
  • bacteriaSTOP (antibacterial coated filter)


Safety

  • Overflow protection
  • Electronic Aqua-Stop


Assembly

  • Can be installed vertically
  • Can be screwed in from the side (e.g. with granite worktop)
  • max. weight of decor front 8 kg
  • Rear foot adjustable from the front
  • Height-adjustable feet (+ 5 cm)
  • Inlet hose approx. 170 cm (incl. Aquastop)
  • Drain hose approx. 180 cm

Technical details

Width 598 mm
Height 860-910 mm
Depth 550 mm
Voltage 220-240 V
Load height upper basket max. 20,5 cm
Loading height upper basket min. 15,5 cm
Loading height lower basket max. 34,5 cm
Loading height lower basket min. 29,5 cm
Energy efficiency class D*
Noise 41 dB(A)
Airborne noise class B*
Water consumption per rinse cycle 9 L im ECO-Programm
Energy consumption per rinse cycle 0,861 kWh im ECO-Programm

Technical details GAVI 7592 88


Accessories for your Fully integrated dishwasher GAVI 7592 88


Downloads

7592 84 User manual GAVI 7592 DE-EN
PDF 7.14 MB
Download
7592 84 Installation and assembly instructions GAVI 7592 DE-EN
pdf 8.80 MB
Download
7592 88 User manual GAVI 7592 XL DE-EN
PDF 7.14 MB
Download
7592 88 Assembly instructions GAVI XL 7592 DE-EN
pdf 3.75 MB
Download
7592 84 Energy label GAVI 7592 INT
PDF 249.01 KB
Download
7592 88 Energy label GAVI 7592 XL INT
PDF 242.81 KB
Download
7592 84 Technical data sheet GAVI 7592 DE-EN
PDF 93.98 KB
Download
7592 88 Technical data sheet GAVI 7592 XL DE-EN
PDF 93.87 KB
Download

Order numbers

GAVI 7592 88 7592 88

Product highlights

bacteriaSTOP

With bacteriaSTOP, the dishes are more than clean: they are hygienically clean.
The specially coated filter reliably eliminates up to 99.99% of bacteria and provides additional safety.

The best:

This also effectively prevents unpleasant smells.


LIFTMATIK

Height-adjustable upper basket with LIFTMATIK




Super silent < 49 dB

ORANIER Dishwasher with this logo operate super silent due to an extra isolation. The noise level is lower than < 49 dB.




Aqua-Stop

Aqua-Stop is a safety system for dishwashers to prevent water damage. The water level is controlled by sensors that automatically stop water supply if water loss is suspected.


Can be mount off the floor
