Headroom wall hood Clario S

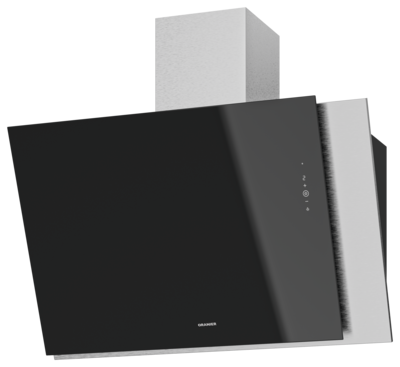

Clario 90 S
Clario 75 S
Clario 60 S
Wall hood with headroom-design, body with stainless steel and stainless shaft, glass shade safety glass black, 90/75/60 cm
Features:
Control:
-
Touch-control an remotecontrol
Performance levels :
- basic modes, 1 power mode
Lighting:
-
2 x 2,8 W LED-Lights (cold white, 4000 K)
Features:
- ORANIER LightUP-Display, white
- Grease filter cleaning indicator
- Automatic run-on (15 minutes)
- Metal grease filter inlay (1 piece at 60S, 2 pieces at 75/90 S), dishwasher safe
- Service opening with hinges

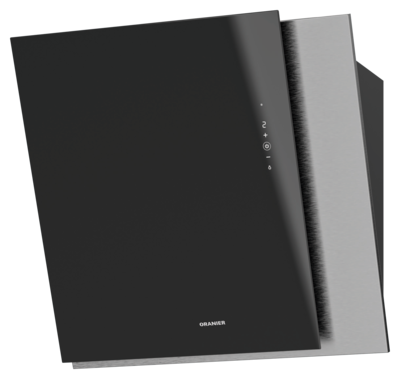

- Can also be installed without shaft
Air vent:
- Ø 150/ Ø 125
- Adjusted off work to extract air operation

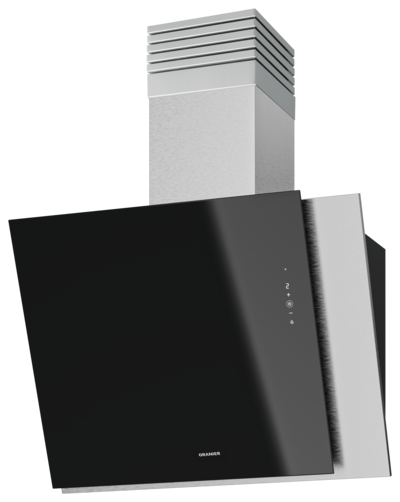

- Circulation air operation possible
Back slash panel:
- Distance between wall and LED lights about 20mm.
All technical data according to EU Regulation No. 65/2014.
Technical details
| Design | Headroom-design |
| Operating mode | Extract / Circulating air |
Technical details Clario 90 S
| Energy efficiency class | B |
| Annual energy consumption | 52,2 kWh |
| Fan-Efficiency | A |
| Lighting-Efficiency | A |
| Grease filter Efficiency | B |
| Sound power min. normal level (db(A) re 1 pW) | 46 dB |
| Sound power max. normal level (db(A) re 1 pW) | 58 dB |
| Sound pressure min./max. normal level (db(A) re 20 µPa) | 35/47 dB |
| Extraction rate to EN 61591 | |
| Exhaust air output min. normal level | 244 m³/h |
| Exhaust air output max. normal level | 424 m³/h |
| Exhaust air power intensive level | 603 m³/h |
Technical details Clario 75 S
| Energy efficiency class | B |
| Annual energy consumption | 54,5 kWh |
| Fan-Efficiency | B |
| Lighting-Efficiency | A |
| Grease filter Efficiency | B |
| Sound power min. normal level (db(A) re 1 pW) | 46 dB |
| Sound power max. normal level (db(A) re 1 pW) | 57 dB |
| Sound pressure min./max. normal level (db(A) re 20 µPa) | 35/46 dB |
| Extraction rate to EN 61591 | |
| Exhaust air output min. normal level | 242 m³/h |
| Exhaust air output max. normal level | 429 m³/h |
| Exhaust air power intensive level | 601 m³/h |
Technical details Clario 60 S
| Energy efficiency class | B |
| Annual energy consumption | 51,9 kWh |
| Fan-Efficiency | B |
| Lighting-Efficiency | A |
| Grease filter Efficiency | C |
| Sound power min. normal level (db(A) re 1 pW) | 46 dB |
| Sound power max. normal level (db(A) re 1 pW) | 57 dB |
| Sound pressure min./max. normal level (db(A) re 20 µPa) | 35/46 dB |
| Extraction rate to EN 61591 | |
| Exhaust air output min. normal level | 241 m³/h |
| Exhaust air output max. normal level | 419 m³/h |
| Exhaust air power intensive level | 590 m³/h |
Accessories for your Headroom wall hood Clario S
Order numbers
| Clario 90 S | 8625 92 |
| Clario 75 S | 8625 77 |
| Clario 60 S | 8625 62 |
