Headroom wall hood Savina S/W

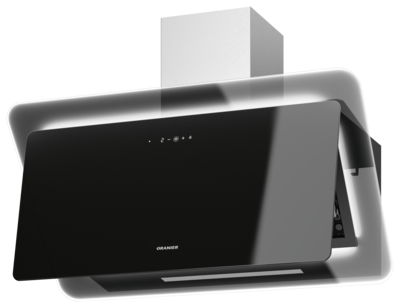

Savina 90 S

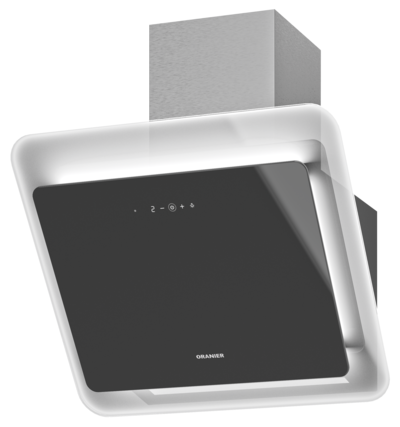

Savina 60 S

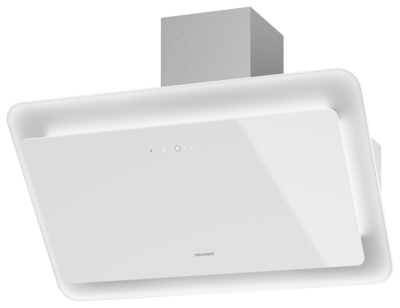

Savina 90 W

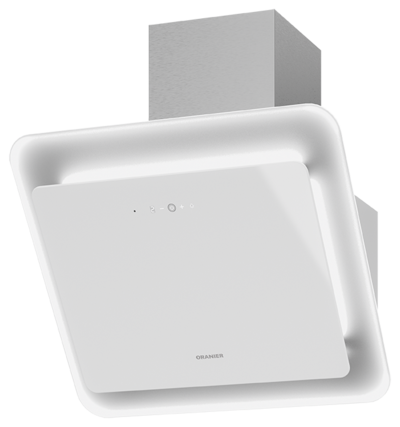

Savina 60 W
Wall hood with headroom-design, body black or white with a shaft made of stainless steel and with glass shade safety glass black or white, ORANIER designLIGHT-Glass edge illumination, 90/60 cm
Control:
- Touch-Control and remote
Performance levels:
- 3 basic modes, 1 power mode
Beleuchtung
- 1x 5 W LED stripe (cold white 3800 K)
ORANIER designLIGHT:
- 60 S/W: 12,5 W
- 90 S/W: 18 W
each LED strip, separately switchable*
*The lighting class in the technical data includes the power consumption of both the hood and the decorative lighting. The hood illumination alone would correspond to a
lighting efficiency A.
Features:
- Glas edge illumination with the ORANIER designLIGHT
- ORANIER LightUP-Display, white
- Grease filter cleaning indicator
- Edge extraction for effective fume extraction
- Automatic run-on (15 minutes)
- Metal grease filter inlay (1 piece), dishwasher safe
- Service opening with hinges
- Can also be installed without shaft (without cover with grille)
Air vent:
- Ø 150/ Ø 125
- Adjusted off work to extract air operation
- Circulation air operation possible
Niche rear wall
- The distance between the wall and the LED lamp is approx. 25 mm.
All technical data according to EU regulation No. 65/2014.
Technical details
| Design | Headroom-design |
| Operating mode | Extract / Circulating air |
Technical details Savina 90 S
| Energy efficiency class | B |
| Annual energy consumption | 62,3 kWh |
| Fan-Efficiency | A |
| Lighting-Efficiency | E |
| Grease filter Efficiency | C |
| Sound power min. normal level (db(A) re 1 pW) | 49 dB |
| Sound power max. normal level (db(A) re 1 pW) | 62 dB |
| Sound pressure min./max. normal level (db(A) re 20 µPa) | 36/51 dB |
| Extraction rate to EN 61591 | |
| Exhaust air output min. normal level | 314 m³/h |
| Exhaust air output max. normal level | 527 m³/h |
| Exhaust air power intensive level | 774 m³/h |
| Width | 896 mm |
| Depth | 417 mm |
Technical details Savina 60 S
| Energy efficiency class | B |
| Annual energy consumption | 62,6 kWh |
| Fan-Efficiency | A |
| Lighting-Efficiency | C |
| Grease filter Efficiency | B |
| Sound power min. normal level (db(A) re 1 pW) | 49 dB |
| Sound power max. normal level (db(A) re 1 pW) | 63 dB |
| Sound pressure min./max. normal level (db(A) re 20 µPa) | 38/51 dB |
| Extraction rate to EN 61591 | |
| Exhaust air output min. normal level | 299 m³/h |
| Exhaust air output max. normal level | 534 m³/h |
| Exhaust air power intensive level | 728 m³/h |
| Width | 596 mm |
| Depth | 417 mm |
Technical details Savina 90 W
| Energy efficiency class | B |
| Annual energy consumption | 62,3 kWh |
| Fan-Efficiency | A |
| Lighting-Efficiency | E |
| Grease filter Efficiency | C |
| Sound power min. normal level (db(A) re 1 pW) | 49 dB |
| Sound power max. normal level (db(A) re 1 pW) | 62 dB |
| Sound pressure min./max. normal level (db(A) re 20 µPa) | 36/51 dB |
| Extraction rate to EN 61591 | |
| Exhaust air output min. normal level | 314 m³/h |
| Exhaust air output max. normal level | 527 m³/h |
| Exhaust air power intensive level | 774 m³/h |
| Width | 896 mm |
| Depth | 417 mm |
Technical details Savina 60 W
| Energy efficiency class | B |
| Annual energy consumption | 62,6 kWh |
| Fan-Efficiency | A |
| Lighting-Efficiency | C |
| Grease filter Efficiency | B |
| Sound power min. normal level (db(A) re 1 pW) | 49 dB |
| Sound power max. normal level (db(A) re 1 pW) | 63 dB |
| Sound pressure min./max. normal level (db(A) re 20 µPa) | 38/51 dB |
| Extraction rate to EN 61591 | |
| Exhaust air output min. normal level | 299 m³/h |
| Exhaust air output max. normal level | 534 m³/h |
| Exhaust air power intensive level | 728 m³/h |
| Width | 596 mm |
| Depth | 417 mm |
Downloads
Order numbers
| Savina 90 S | 8740 90 |
| Savina 60 S | 8740 60 |
| Savina 90 W | 8745 90 |
| Savina 60 W | 8745 60 |
