Headroom wall hood Selena S/W
Selena 90 S

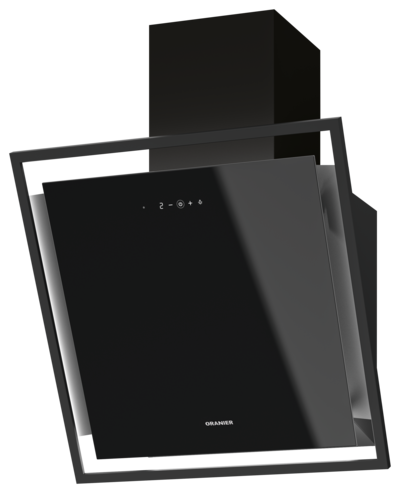

Selena 60 S

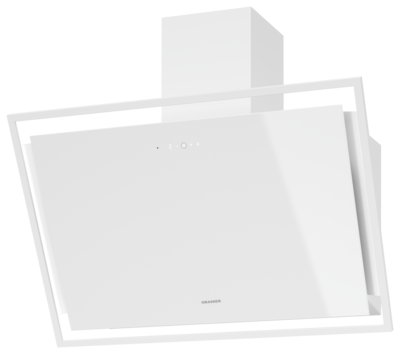

Selena 90 W

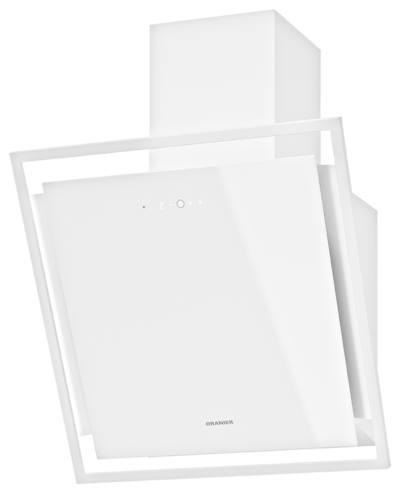

Selena 60 W
Head-free design wall hoob, shaft in pureBLACK or white, glass shade safety glass black or white, ORANIER designLIGHT frame, 90/60 cm
Control:
- Touch-control and remote
Performance levels:
- 3 basic modes, 1 power mode
Lighting:
- 60 S/W: 1 x 5 W LED stripe (cold white 3800K)
- 90 S/W: 2 x 5 W LED stripes (cold white 3800K)
ORANIER designLIGHT:
- 60 S/W: 25 W
- 90 S/W: 31 W
each LED strip, separately switchable*
*The lighting class in the technical data includes the power consumption of both the hood and the decorative lighting.
The hood illumination alone would correspond to a lighting efficiency A.
Features:
- ORANIER designLIGHT
- ORANIER LightUP-Display, white
- Grease filter cleaning indicator
- Remote control
- Edge extraction for effective fume extraction
- Automatic run-on (15 minutes)
- Metal grease filters (Selena 60: 1 piece, Selena 90: 2 pieces) inside
and dishwasher-safe - Service opening with hinges
- Can also be installed without shaft (without cover with grille)
Air vent:
- Ø 150/ Ø 125
- Adjusted off work to extract air operation
- Circulation air operation possible
Niche rear wall
- The distance between the wall and the LED lamp is approx. 25 mm.
All technical data according to EU regulation No. 65/2014.
Technical details
| Design | Headroom-design |
| Operating mode | Extract / Circulating air |
Technical details Selena 90 S
| Energy efficiency class | B |
| Annual energy consumption | 76,3 kWh |
| Fan-Efficiency | A |
| Lighting-Efficiency | E* |
| Grease filter Efficiency | B |
| Sound power min. normal level (db(A) re 1 pW) | 50 dB |
| Sound power max. normal level (db(A) re 1 pW) | 63 dB |
| Sound pressure min./max. normal level (db(A) re 20 µPa) | 39/52 dB |
| Extraction rate to EN 61591 | |
| Exhaust air output min. normal level | 319 m³/h |
| Exhaust air output max. normal level | 523 m³/h |
| Exhaust air power intensive level | 790 m³/h |
Technical details Selena 60 S
| Energy efficiency class | B |
| Annual energy consumption | 74,9 kWh |
| Fan-Efficiency | A |
| Lighting-Efficiency | E* |
| Grease filter Efficiency | B |
| Sound power min. normal level (db(A) re 1 pW) | 50 dB |
| Sound power max. normal level (db(A) re 1 pW) | 63 dB |
| Sound pressure min./max. normal level (db(A) re 20 µPa) | 39/52 dB |
| Extraction rate to EN 61591 | |
| Exhaust air output min. normal level | 293 m³/h |
| Exhaust air output max. normal level | 500 m³/h |
| Exhaust air power intensive level | 760 m³/h |
Technical details Selena 90 W
| Energy efficiency class | B |
| Annual energy consumption | 76,3 kWh |
| Fan-Efficiency | A |
| Lighting-Efficiency | E* |
| Grease filter Efficiency | B |
| Sound power min. normal level (db(A) re 1 pW) | 50 dB |
| Sound power max. normal level (db(A) re 1 pW) | 63 dB |
| Sound pressure min./max. normal level (db(A) re 20 µPa) | 39/52 dB |
| Extraction rate to EN 61591 | |
| Exhaust air output min. normal level | 319 m³/h |
| Exhaust air output max. normal level | 523 m³/h |
| Exhaust air power intensive level | 790 m³/h |
Technical details Selena 60 W
| Energy efficiency class | B |
| Annual energy consumption | 74,9 kWh |
| Fan-Efficiency | A |
| Lighting-Efficiency | E* |
| Grease filter Efficiency | B |
| Sound power min. normal level (db(A) re 1 pW) | 50 dB |
| Sound power max. normal level (db(A) re 1 pW) | 63 dB |
| Sound pressure min./max. normal level (db(A) re 20 µPa) | 39/52 dB |
| Extraction rate to EN 61591 | |
| Exhaust air output min. normal level | 293 m³/h |
| Exhaust air output max. normal level | 500 m³/h |
| Exhaust air power intensive level | 760 m³/h |
Accessories for your Headroom wall hood Selena S/W
Downloads
Order numbers
| Selena 90 S | 8730 90 |
| Selena 60 S | 8730 60 |
| Selena 90 W | 8733 90 |
| Selena 60 W | 8733 60 |
