Island hood Livia Isola S/W
80 S
80 W

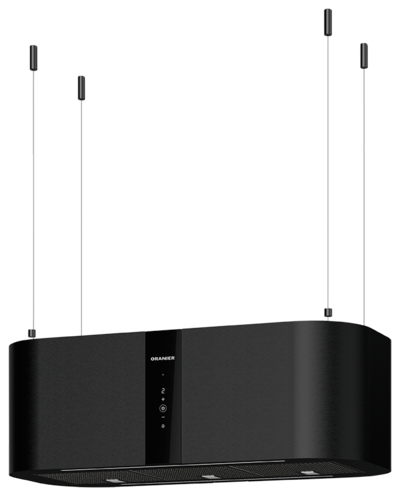

Island hood, hood body black/white with glass shade safety glass black, steel rope mount, 80 cm
Control
ORANIER LightUP-display with remote
Performance levels
3 basic modes, 1 power mode
Lighting
2x 14,4 W LED-strips cold white 6000 - 6500 K
Features
- ORANIER LightUP-display white
- Automatic run-on
- Grease filter cleaning indicator
- Remote control
- Metal grease filters (3 pieces), dishwasher-safe
Exhaust air connection
- Recirculation mode only
- Active charcoal filter KSC 800 is not included in the scope of delivery
Technical details
| Design | Inselhaube |
| Operating mode | Umluft |
| Energy efficiency class | B |
| Annual energy consumption | 69,6 kWh |
| Fan-Efficiency | A |
| Lighting-Efficiency | B |
| Grease filter Efficiency | A |
| Sound power min. normal level (db(A) re 1 pW) | 50 dB |
| Sound power max. normal level (db(A) re 1 pW) | 69 dB |
| Sound pressure min./max. normal level (db(A) re 20 µPa) | 39/58 dB |
| Extraction rate to EN 61591 | |
| Exhaust air output min. normal level | 248 m³/h |
| Exhaust air output max. normal level | 620 m³/h |
| Exhaust air power intensive level | 698 m³/h |
Downloads
Order numbers
| 80 S | 8619 80 |
| 80 W | 8619 85 |
