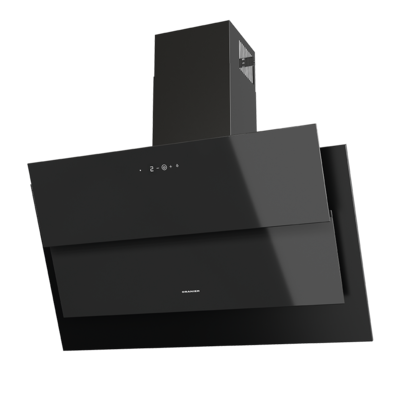

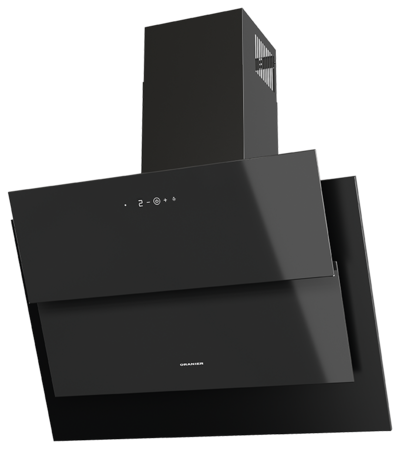

Wall hood with headroom-design LITO
LITO90S1
LITO75S1
LITO60S1
Wall hood with headroom-design, hood body and shaft in
pureBLACK, glass shade safety glass black, 90/75/60 cm
Features
- Touch control operation
- White LED display
- 3 normal settings, 1 intensive setting
- LED lighting
Convenience functions
- hoodCON ready (automatic control for ORANIER induction hobs with hoodCON)
- White LED display
- Automatic run-on function
- Grease filter cleaning indicator
- Metal grease filter dishwasher-safe
- Can also be installed without shaft
* According to DELEGATED REGULATION (EU) No 65/2014.
Technical details
| Design | Wall hood with headroom-design |
| Operating mode | Exhaust air/recirculating air |
Technical details LITO90S1
| Energy efficiency class | B |
| Annual energy consumption | 50,8 kWh |
| Fan-Efficiency | B |
| Lighting-Efficiency | A |
| Grease filter Efficiency | C |
| Sound power min. normal level (db(A) re 1 pW) | 49 dB |
| Sound power max. normal level (db(A) re 1 pW) | 61 dB |
| Extraction rate to EN 61591 | |
| Exhaust air output min. normal level | 255 m³/h |
| Exhaust air output max. normal level | 470 m³/h |
| Exhaust air power intensive level | 630 m³/h |
Technical details LITO75S1
| Energy efficiency class | B |
| Annual energy consumption | 50,8 kWh |
| Fan-Efficiency | B |
| Lighting-Efficiency | A |
| Grease filter Efficiency | C |
| Sound power min. normal level (db(A) re 1 pW) | 49 dB |
| Sound power max. normal level (db(A) re 1 pW) | 61 dB |
| Extraction rate to EN 61591 | |
| Exhaust air output min. normal level | 255 m³/h |
| Exhaust air output max. normal level | 470 m³/h |
| Exhaust air power intensive level | 630 m³/h |
Technical details LITO60S1
| Energy efficiency class | B |
| Annual energy consumption | 55,7 kWh |
| Fan-Efficiency | B |
| Lighting-Efficiency | A |
| Grease filter Efficiency | C |
| Sound power min. normal level (db(A) re 1 pW) | 49 dB |
| Sound power max. normal level (db(A) re 1 pW) | 61 dB |
| Extraction rate to EN 61591 | |
| Exhaust air output min. normal level | 250 m³/h |
| Exhaust air output max. normal level | 455 m³/h |
| Exhaust air power intensive level | 600 m³/h |
Accessories for your Wall hood with headroom-design LITO
Downloads
Order numbers
| LITO90S1 | LITO90S1 |
| LITO75S1 | LITO75S1 |
| LITO60S1 | LITO60S1 |
