Wall hood with headroom-design Miran S

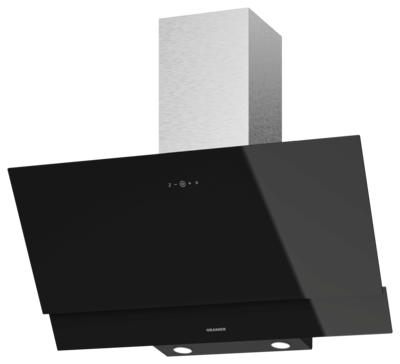

Miran 90 S

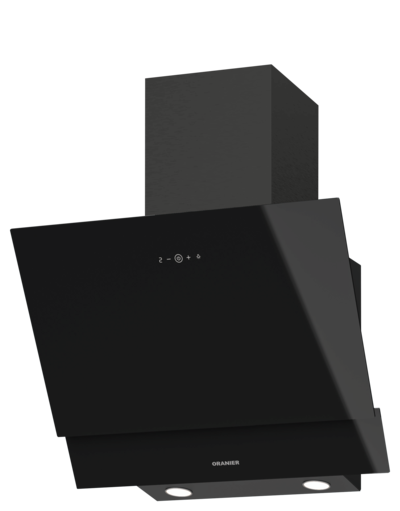

Miran 60 S
Control:
- Touch-Control
Performance levels:
- 3 basic modes, 1 power mode
Lighting:
- 2 x 2,8 W LED-lights (cold white, 4000K)
Features:
- ORANIER LightUP-Display, white
- Grease filter cleaning indicator
- Automatic run-on (15 minutes)
- Metal grease filter inlay (1 piece), dishwasher safe
- Service opening with hinges
- Can also be installed without shaft (without cover with grille)
Exhaust air spigot:
- Ø 150 / Ø 125
- Factory set for exhaust air operation
- Recirculation mode possible
Niche rear wall
- The distance between the wall and the LED lamp is approx. 40 mm.
All technical data according to EU regulation No. 65/2014.
Technical details
| Design | Headroom-design |
| Operating mode | Extract / Circulating air |
Technical details Miran 90 S
| Energy efficiency class | B |
| Annual energy consumption | 57,8 kWh |
| Fan-Efficiency | B |
| Lighting-Efficiency | A |
| Grease filter Efficiency | B |
| Sound power min. normal level (db(A) re 1 pW) | 44 dB |
| Sound power max. normal level (db(A) re 1 pW) | 56 dB |
| Sound pressure min./max. normal level (db(A) re 20 µPa) | 32/44 dB |
| Extraction rate to EN 61591 | |
| Exhaust air output min. normal level | 200 m³/h |
| Exhaust air output max. normal level | 373 m³/h |
| Exhaust air power intensive level | 549 m³/h |
Technical details Miran 60 S
| Energy efficiency class | B |
| Annual energy consumption | 57,8 kWh |
| Fan-Efficiency | B |
| Lighting-Efficiency | A |
| Grease filter Efficiency | B |
| Sound power min. normal level (db(A) re 1 pW) | 44 dB |
| Sound power max. normal level (db(A) re 1 pW) | 56 dB |
| Sound pressure min./max. normal level (db(A) re 20 µPa) | 32/44 dB |
| Extraction rate to EN 61591 | |
| Exhaust air output min. normal level | 200 m³/h |
| Exhaust air output max. normal level | 373 m³/h |
| Exhaust air power intensive level | 549 m³/h |
