Wall hood with headroom-design SIGNA

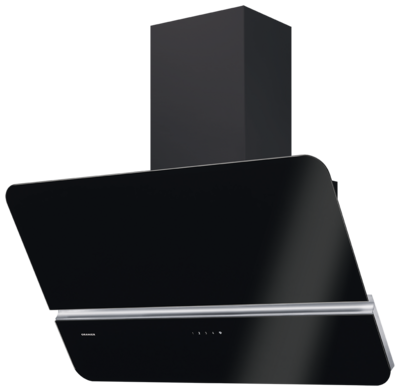

SIGNA90S1

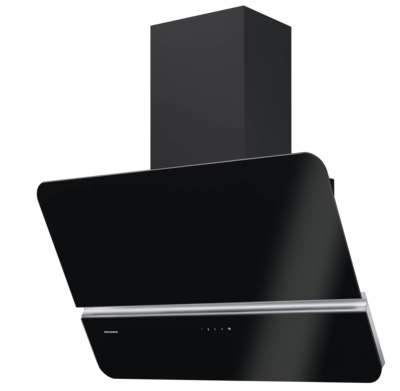

SIGNA75S1

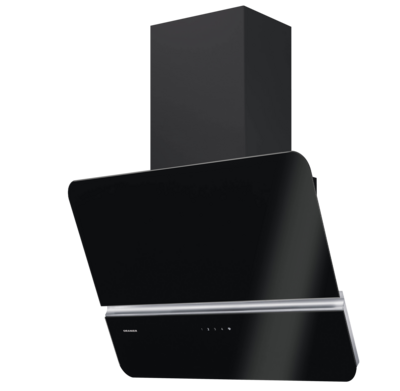

SIGNA60S1
Wall hood with headroom-design, hood body and shaft in
pureBLACK, glass shade safety glass black, 90/75/60 cm
Features
- Touch control operation
- White LED display
- 3 normal settings, 1 intensive setting
- LED lighting
Convenience functions
- White LED display
- Automatic run-on function
- Metal grease filter dishwasher-safe
- Can also be installed without shaft
* According to DELEGATED REGULATION (EU) No 65/2014.
Technical details
| Design | Wall hood with headroom-design |
| Operating mode | Exhaust air/recirculating air |
Technical details SIGNA90S1
| Energy efficiency class | B |
| Annual energy consumption | 53,0 kWh |
| Fan-Efficiency | A |
| Lighting-Efficiency | A |
| Grease filter Efficiency | C |
| Sound power min. normal level (db(A) re 1 pW) | 45 dB |
| Sound power max. normal level (db(A) re 1 pW) | 59 dB |
| Extraction rate to EN 61591 | |
| Exhaust air output min. normal level | 238 m³/h |
| Exhaust air output max. normal level | 498 m³/h |
| Exhaust air power intensive level | 654 m³/h |
Technical details SIGNA75S1
| Energy efficiency class | B |
| Annual energy consumption | 53,0 kWh |
| Fan-Efficiency | A |
| Lighting-Efficiency | A |
| Grease filter Efficiency | C |
| Sound power min. normal level (db(A) re 1 pW) | 45 dB |
| Sound power max. normal level (db(A) re 1 pW) | 59 dB |
| Extraction rate to EN 61591 | |
| Exhaust air output min. normal level | 238 m³/h |
| Exhaust air output max. normal level | 498 m³/h |
| Exhaust air power intensive level | 654 m³/h |
Technical details SIGNA60S1
| Energy efficiency class | B |
| Annual energy consumption | 53,0 kWh |
| Fan-Efficiency | A |
| Lighting-Efficiency | A |
| Grease filter Efficiency | C |
| Sound power min. normal level (db(A) re 1 pW) | 45 dB |
| Sound power max. normal level (db(A) re 1 pW) | 59 dB |
| Extraction rate to EN 61591 | |
| Exhaust air output min. normal level | 238 m³/h |
| Exhaust air output max. normal level | 498 m³/h |
| Exhaust air power intensive level | 654 m³/h |
Accessories for your Wall hood with headroom-design SIGNA
Downloads
Order numbers
| SIGNA90S1 | SIGNA90S1 |
| SIGNA75S1 | SIGNA75S1 |
| SIGNA60S1 | SIGNA60S1 |
