HiLight-hob (frameless) KFC 9983 SL

This model can be assembled in 3 different ways:

  • Placed on the worktop
  • Placed on the worktop with
    side rails in stainless steel or pureBLACK
  • Placed on the worktop with
    frame in stainless steel or pureBLACK



Features:



Control:

Slider operation


Safety:

  • Child protection
  • Overflow protection
  • Overheat protection
  • Residual heat display
  • Operation time limit



Equipment:

  • 9 performance levels for each cooking area
  • 4-times timer (max. each 99 minutes)

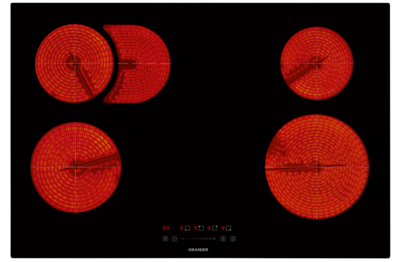

4 energy controlled cooking areas:

  • Powerful and fast
  • front right: dual-circuit zone Hilight 215/150 mm: 2.3/1.15 kW
  • front left: Hilight 185 mm/1.8 kW
  • rear right: Hilight 150 mm/1.2 kW
  • rear left: roasting zone Hilight 270/160 mm: 2.0/1.0 kW



Attention! Do not assemble above built-under-units (e.g. dishwasher or fridges) or corner cupboard.


Delivery info

1 Metal scraper

Technical details

Width 780 mm
Height 45 mm
Depth 520 mm
Section width 750 mm
Cut depth 490 mm
Voltage 400 V
Safeguarding 16 A
Connection 7,3 kW
Connection cable length 130 cm
Technology HiLight

Accessories for your HiLight-hob (frameless) KFC 9983 SL


Order numbers

KFC 9983 SL 9983 20

Product highlights

Overheat protection

If the cooking zones are operated on maximum performance the overheat protection prevents the electronic devices from damage.


Overflow protection
