Induction-hob (frameless) KFI 9981 TC
KFI 9981 TC
This model offers 4 installation variants
» Flush with the surface
» Fitted on the worktop
» Fitted on the worktop with side rails in stainless steel or pureBLACK
» Fitted on the worktop with frame in stainless steel or pureBLACK
Features

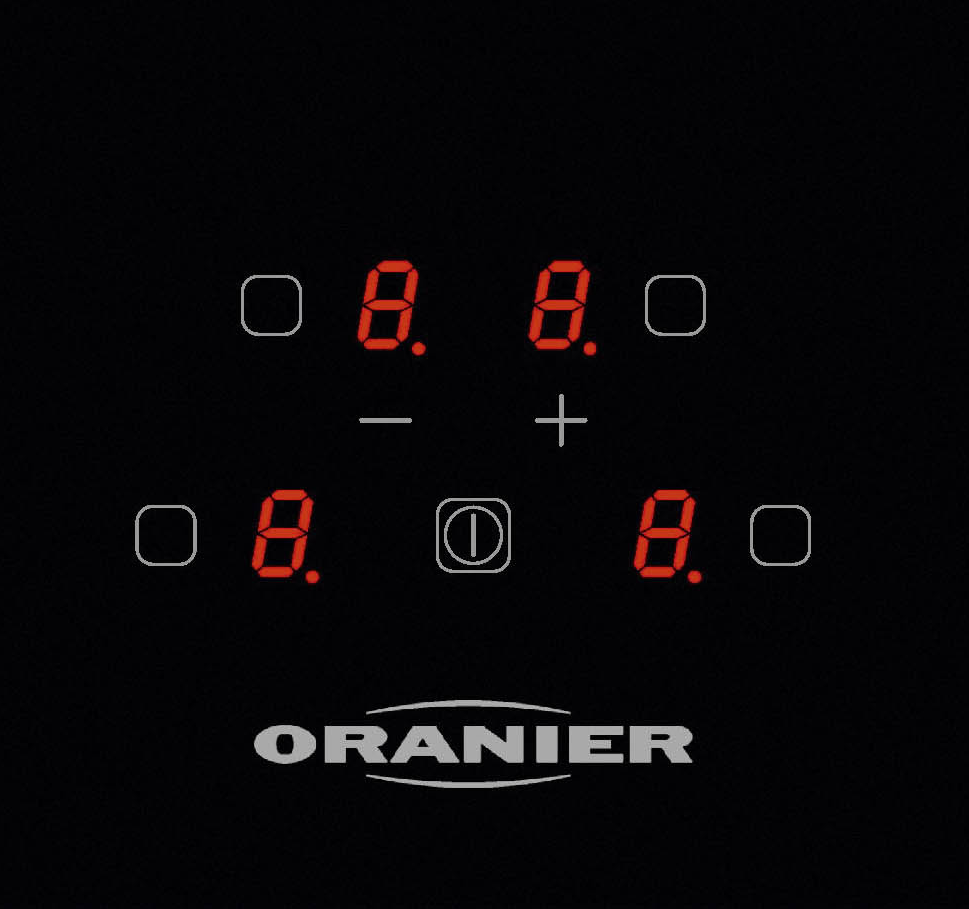

Control:
Touch-Control-Control
Safety
» Child safety lock
» Overflow protection
» Overheating protection
» residual heat indicator
» Operating time limit
Accessoires:
» 9 power levels per cooking zone
» 4 timers (max. 99 minutes each)
» Short-time alarm
» Pot detection
» Pot size recognition
4 induction-cooking areas:
» hinten links 185 mm: 1,4 kW » vorne links 185 mm: 1,4 kW » hinten rechts 215 mm: 2,3 kW » vorne rechts 185 mm: 1,4 kW
Attention! Do not assemble above built-under-units (e.g. dishwasher or fridges) or corner cupboard. In case of a flush mount assembling, the device can be opened from the bottom. The glass surface needs not to be disassembled.
Technical details
| Width | 780 mm |
| Height | 56 mm |
| Depth | 520 mm |
| Section width | 750 mm |
| Cut depth | 490 mm |
| Voltage | 400 V |
| Safeguarding | 16 A |
| Connection | 7,1 kW |
| Connection cable length | 120 cm |
| Technology | Induction |
Accessories for your Induction-hob (frameless) KFI 9981 TC
Order numbers
| KFI 9981 TC | 9981 10 |
