Pellet stove Boreas

  • Extra large pellet reservoir, approx. 30 kg
  • Touch control element with icon and dialog guided handling
  • Height-adjustable feet
  • Automatic burner pot cleaning
  • Temperature-controlled performance adjustment
  • Automatic lowering of temperature at night (via SmartCon)
  • Operating times programmable
  • External operation via remote control / Smartphone via WiFi modul
    ORANIER smartCon

Technical details

Energy efficiency class A+
Connection possibility top or rear (depending on version)
Operation with external air supply rear
heating capacity 3,0 - 8,0 kW
Height 1100 mm
Width 850 mm
Depth 386 mm
Weight (incl. packaging) 206 kg
Fuel content 30 kg
Burning time max. 46 h
Room heating capacity up to 200 m³
Efficiency > 90 %
Power consumption continuous operation 3 - 41 W

Downloads

7962 User manual Boreas II DE-EN
pdf 11.98 MB
Download
Bedienungsanleitung conGuide DE-EN
pdf 3.01 MB
Download
Service manual Pellet stove DE-EN
pdf 611.19 KB
Download
7962 CE marking Boreas II INT
pdf 138.98 KB
Download
7962 Declaration of Conformity EU (DoC) Boreas II INT
pdf 94.04 KB
Download
7962 Energy label Boreas II INT
pdf 100.29 KB
Download
7962 Declaration of performance Boreas II INT
pdf 149.24 KB
Download
7962 Product data sheet Boreas II INT
pdf 112.68 KB
Download
7962 Drawing Boreas II INT
pdf 43.27 KB
Download

Order numbers

Sintered Stone Silk White, top connection 7962 12

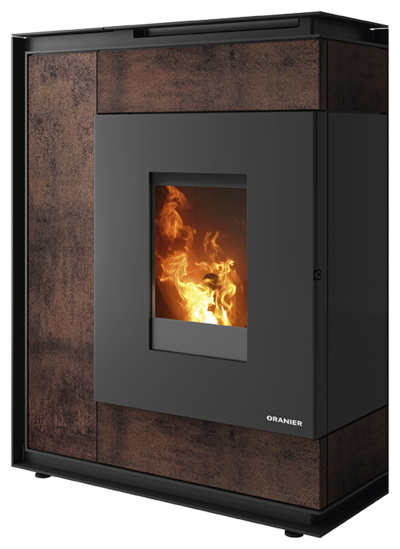

Sintered Stone Corten, top connection 7962 13

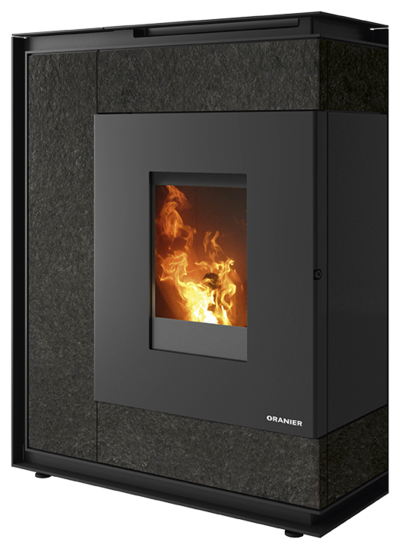

Sintered Stone Slate, top connection 7962 14

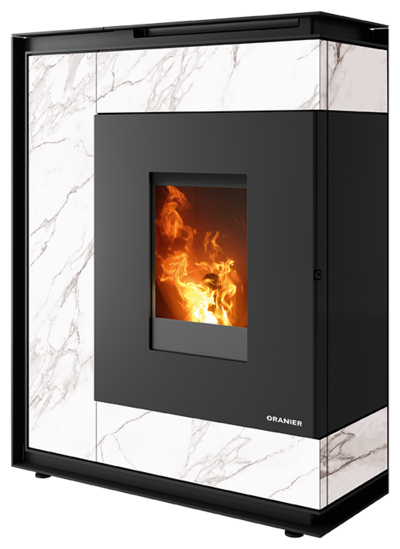

Sintered Marble White, top connection 7962 15
Sintered Stone Silk White, back connection 7962 22
Sintered Stone Corten, back connection 7962 23
Sintered Stone Slate, back connection 7962 24
Sintered Marble White, back connection 7962 25
