Pellet stove Sando 50

  • Large full glass panoramic glass
  • Height-adjustable feet
  • Automatic burner pot cleaning
  • Temperature-controlled performance adjustment
  • Automatic lowering of temperature at night (via SmartCon)
  • Operating times programmable
  • Touch-control-panel with a symbol- and dialog interface
  • External operation via remote control / Smartphone via WiFi modul
    ORANIER smartCon
  • The convection fan is controlled electronically

Technical details

Energy efficiency class A+
Connection possibility rear
Operation with external air supply rear
heating capacity 2,4 - 8,0 kW
Height 1097 mm
Width 535 mm
Depth 580 mm
Weight (incl. packaging) 125 kg
Fuel content 25 kg
Burning time max. 42 h
Room heating capacity up to 200 m³
Efficiency > 90 %
Power connection 230 V
Power consumption continuous operation 3 - 50 W

Downloads

Serviceheft Pelletofen DE-EN
pdf 611.19 KB
Download
7968 Bedienungsanleitung Sando 50 II DE-EN-FR
pdf 5.24 MB
Download
User manual conGuide DE-EN-FR
pdf 3.59 MB
Download
7968 Drawing Sando 50 INT
pdf 97.35 KB
Download

Order numbers

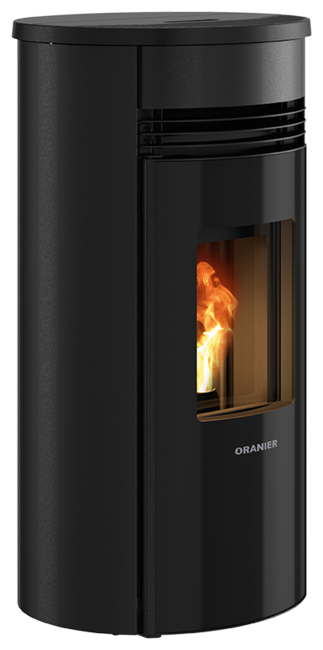

Steel black 7968 11
Bordeaux red 7968 37

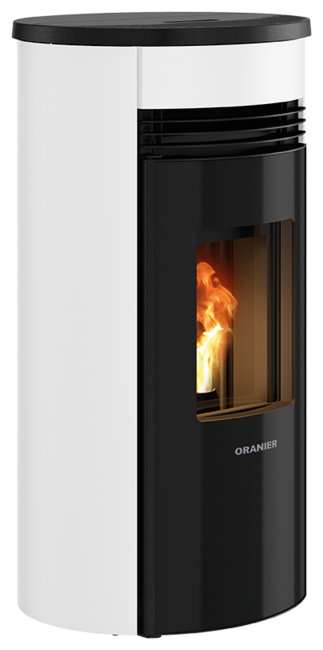

Silk white 7968 87

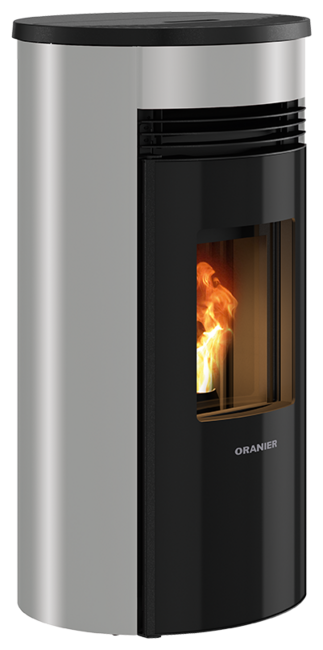

Taupe 7968 45
