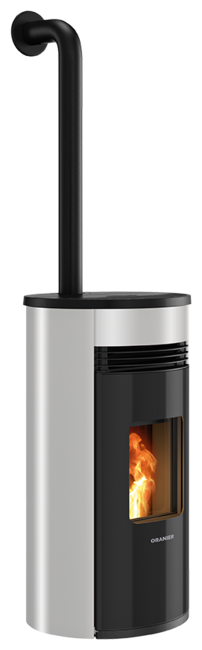

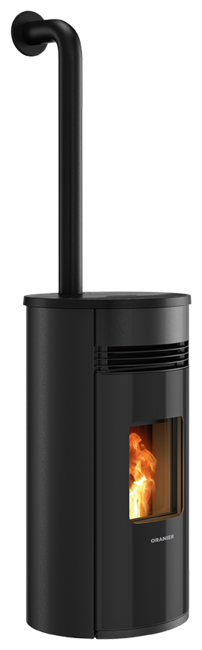

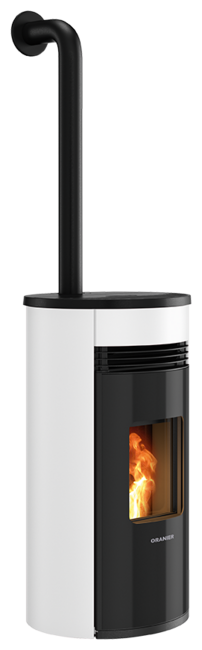

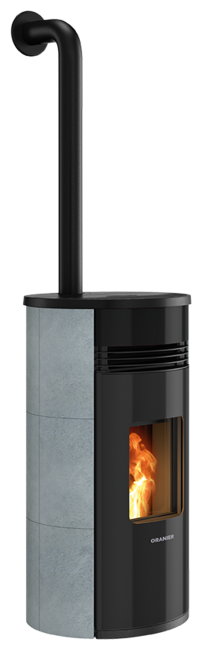

Pellet stove Sando 60

  • Large full glass panoramic glass
  • Height-adjustable feet
  • Automatic burner pot cleaning
  • Temperature-controlled performance adjustment
  • Automatic lowering of temperature at night (via SmartCon)
  • Operating times programmable
  • Touch-control-panel with a symbol- and dialog interface
  • External operation via remote control / Smartphone via WiFi modul
    ORANIER smartCon
  • The convection fan is controlled electronically

Technical details

Energy efficiency class A+
Connection possibility top
Operation with external air supply rear
heating capacity 2,4 - 8,0 kW
Height 1129 mm
Width 558 mm
Depth 558 mm
Weight (incl. packaging) 130 kg
Fuel content 24 kg
Burning time max. 40 h
Room heating capacity up to 200 m³
Efficiency > 90 %
Power connection 230 V
Power consumption continuous operation 3 - 50 W

Downloads

7969 Bedienungsanleitung Sando 60 II DE-EN-FR
pdf 5.31 MB
Download
User manual conGuide DE-EN-FR
pdf 3.59 MB
Download
Serviceheft Pelletofen DE-EN
pdf 611.19 KB
Download
7969 Drawing Sando 60 INT
pdf 223.87 KB
Download

Order numbers

Steel black 7969 11
Bordeaux red 7969 37
Silk white 7969 87
Soapstone 7969 22
Taupe 7969 45
