Wood stove Polar Neo Eck

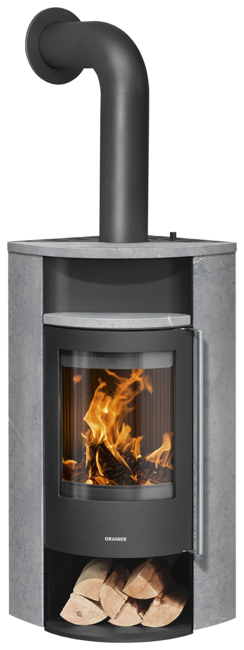

Soapstone, corpus steel black

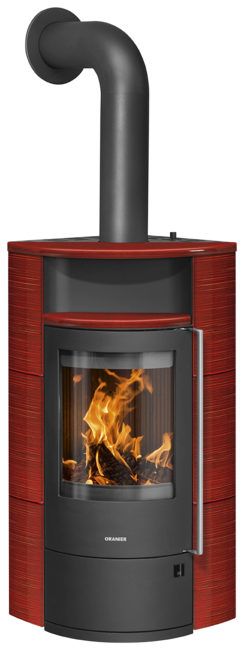

Ceramic Pepper red, corpus steel black

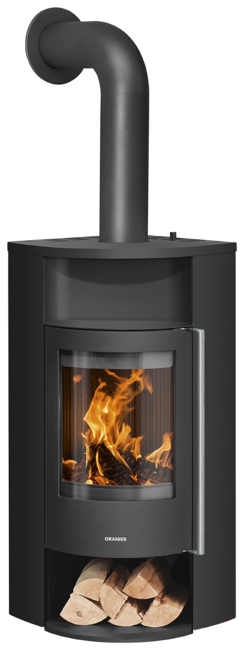

Steel black

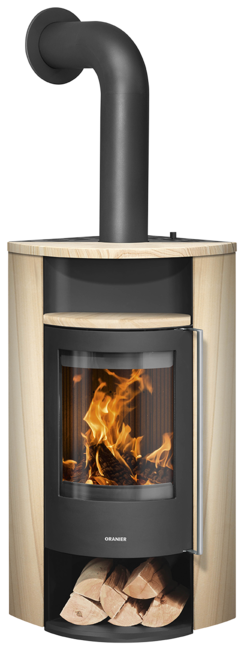

Sandstone, corpus steel black

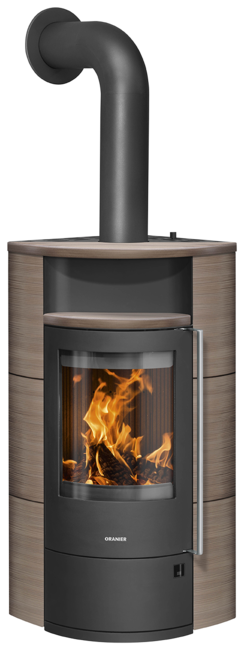

Ceramic Grappa, corpus steel black

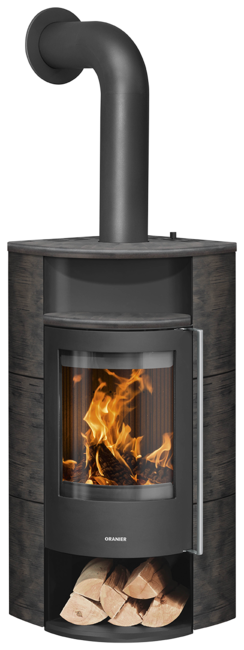

Ceramic Namib, corpus steel black

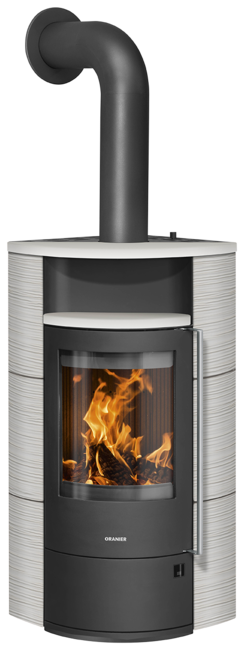

Ceramic Silk white, corpus steel black
- Automatic primary air control
- ORANIER safe-locking-system
- Height-adjustable feet
- Standard external combustion air connection
- Profiled vermiculite firebox lining
- Solid cast iron door / cast iron base
- Extra large ash tray
- Stone / ceramic designs – Cover plate, sides and warming compartment in stone/ceramic
The connection piece for external combustion air is not included in the scope of delivery.
Technical details
| Energy efficiency class | A |
| Connection possibility | top |
| Operation with external air supply | rear left + right / bottom |
| Nominal heat output | 6,5 kW |
| Height | 1223 mm |
| Width | 689 mm |
| Depth | 587 mm |
| Weight (incl. packaging) steel | 173 kg |
| Weight (incl. packaging) stone | 230 kg |
| Weight (incl. packaging) Ceramic | 230 kg |
| Room heating capacity up to | 128 m³ |
| Efficiency | >80 % |
| Length of logs | 30 cm |
| Exhaust gas mass flow | 6,3 g/s |
| Exhaust temperature | 261 °C |
| Required delivery pressure | 0,12 mbar |
Accessories for your Wood stove Polar Neo Eck
Downloads
Order numbers
| Soapstone, corpus steel black | 5486 23 |
| Ceramic Pepper red, corpus steel black | 5486 86 |
| Steel black | 5486 11 |
| Sandstone, corpus steel black | 5486 42 |
| Ceramic Grappa, corpus steel black | 5486 87 |
| Ceramic Namib, corpus steel black | 5486 84 |
| Ceramic Silk white, corpus steel black | 5486 85 |
Product highlights
External combustion air supply
In modern, more dense buildings with controlled ventilation systems, the combustion air must be supplied from the outside so there can not arise a vacuum in the living room. This requires a separate external air supply.
Please notice:
The simultaneous operation of a stove with solid fuels and controlled ventilations systems is only permittet, if the stove has an approval under building law as independent of ambient air stove according to DBIT. The stove has to be equiped with a security device e.g. low pressure warning device that has acces to the ventilation systems and is able to turn them off in case a vacuum arises.
Please find more information about DBIT in the users manual.
