Wood stove Polar Neo W+

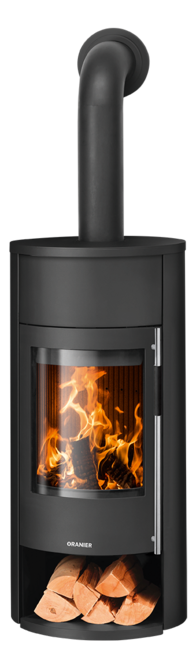

Polar Neo W+ steel black
Polar Neo W+ Soapstone, corpus steel black

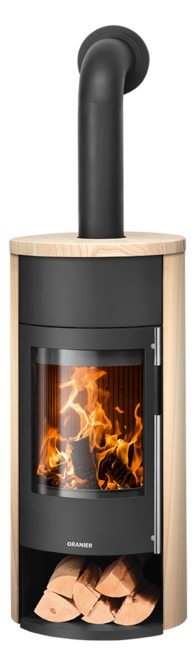

Polar Neo W+ Sandstone, corpus steel black
Polar Neo W+ Ceramic Namib, corpus steel black
Polar Neo W+ Ceramic Silk white, corpus steel black
Polar Neo W+ Ceramic Pepper red, corpus steel black

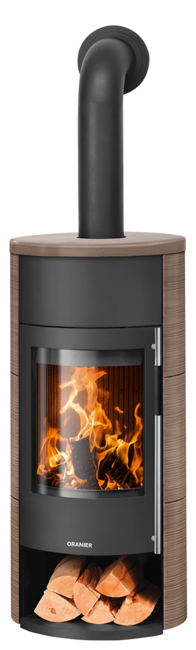

Polar Neo W+ Ceramic Grappa, corpus steel black
- Automatic primary air control
- Heat accumulation stone W+, ca. 56 kg
- ORANIER Snap lock system
- Height-adjustable feet
- Firebox lining from white refractory concrete
with „Max. Load“ information - Standard external combustion air connection
- Solid cast iron door / cast iron base
- Extra large ash tray
- Stone / ceramic cover plate combination with heat accumulation
stone compartment
The connecting piece for external combustion air supply is not included in the scope of delivery.
Technical details
| Energy efficiency class | A |
| Connection possibility | top / rear |
| Operation with external air supply | rear / bottom |
| Nominal heat output | 8,0 kW |
| Height | 1323 mm |
| Width | 595 mm |
| Depth | 505 mm |
| Weight (incl. packaging) steel | 219 kg |
| Weight (incl. packaging) stone | 287 kg |
| Weight of storage block W + | 56 kg |
| Room heating capacity up to | 182 m³ |
| Efficiency | >80 % |
| Length of logs | 35 cm |
| Exhaust gas mass flow | 6,2 g/s |
| Exhaust temperature | 338 °C |
| Required delivery pressure | 0,12 mbar |
Accessories for your Wood stove Polar Neo W+
Order numbers
| Polar Neo W+ steel black | 5569 11 |
| Polar Neo W+ Soapstone, corpus steel black | 5569 52 |
| Polar Neo W+ Sandstone, corpus steel black | 5569 42 |
| Polar Neo W+ Ceramic Namib, corpus steel black | 5569 84 |
| Polar Neo W+ Ceramic Silk white, corpus steel black | 5569 85 |
| Polar Neo W+ Ceramic Pepper red, corpus steel black | 5569 86 |
| Polar Neo W+ Ceramic Grappa, corpus steel black | 5569 87 |
Product highlights
External combustion air supply
In modern, more dense buildings with controlled ventilation systems, the combustion air must be supplied from the outside so there can not arise a vacuum in the living room. This requires a separate external air supply.
Please notice:
The simultaneous operation of a stove with solid fuels and controlled ventilations systems is only permittet, if the stove has an approval under building law as independent of ambient air stove according to DBIT. The stove has to be equiped with a security device e.g. low pressure warning device that has acces to the ventilation systems and is able to turn them off in case a vacuum arises.
Please find more information about DBIT in the users manual.
