Wood stove Rota Twist

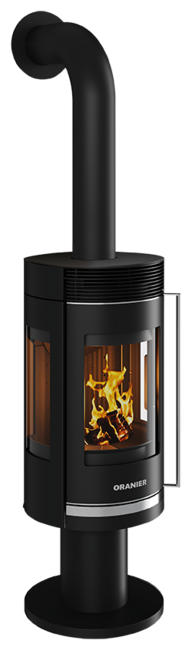

Cover plate steel black, corpus steel black

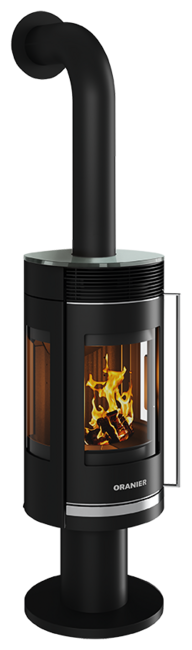

Cover plate glass, corpus steel black
Cover plate Soapstone, corpus steel black

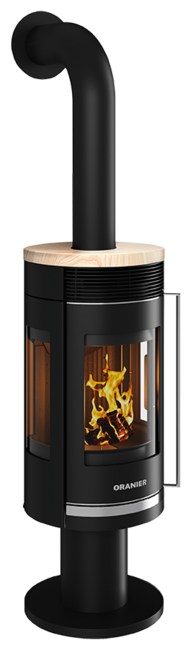

Cover plate Sandstone, corpus steel black

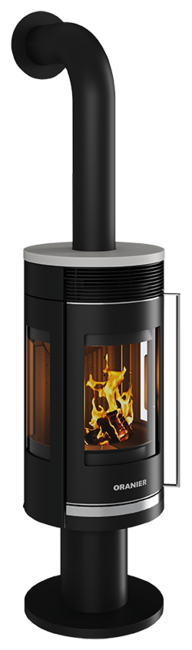

Cover plate Limestone Bianco, corpus steel black

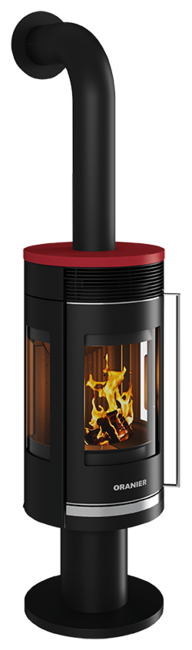

Cover plate Ceramic Bordeaux red, corpus steel black
Cover plate Ceramic Silk white, corpus steel black

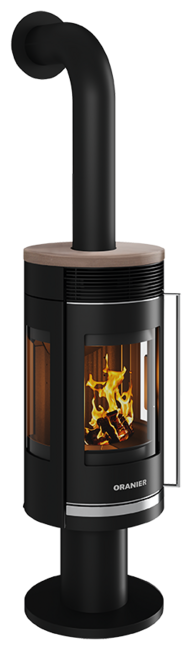

Cover plate Ceramic Grappa, corpus steel black
- ORANIER Snap lock system
- Profiled vermiculite firebox lining
- Solid cast iron door with stainless steel frame
- Solid cast iron base
- Air flow handle
- Standard external combustion air connection
The connecting piece for external combustion air supply is not included in the scope of delivery..
Technical details
| Energy efficiency class | A |
| Connection possibility | top |
| Operation with external air supply | rear / bottom |
| Nominal heat output | 5,5 kW |
| Height | 1166 mm |
| Width | 459 mm |
| Depth | 459 mm |
| Weight (incl. packaging) steel | 112 kg |
| Weight (incl. packaging) glass | 112 kg |
| Weight (incl. packaging) stone | 121 kg |
| Room heating capacity up to | 88 m³ |
| Efficiency | > 78 % |
| Length of logs | 30 cm |
| Exhaust gas mass flow | 5,1 g/s |
| Exhaust temperature | 324 °C |
| Required delivery pressure | 0,12 mbar |
Downloads
Order numbers
| Cover plate steel black, corpus steel black | 5797 10 |
| Cover plate glass, corpus steel black | 5797 30 |
| Cover plate Soapstone, corpus steel black | 5797 22 |
| Cover plate Sandstone, corpus steel black | 5797 42 |
| Cover plate Limestone Bianco, corpus steel black | 5797 89 |
| Cover plate Ceramic Bordeaux red, corpus steel black | 5797 37 |
| Cover plate Ceramic Silk white, corpus steel black | 5797 87 |
| Cover plate Ceramic Grappa, corpus steel black | 5797 32 |
