Wood gasification stove Hektos Aqua
Soapstone, corpus steel black
Limestone cream, corpus steel black
- Dual-Fire-technology

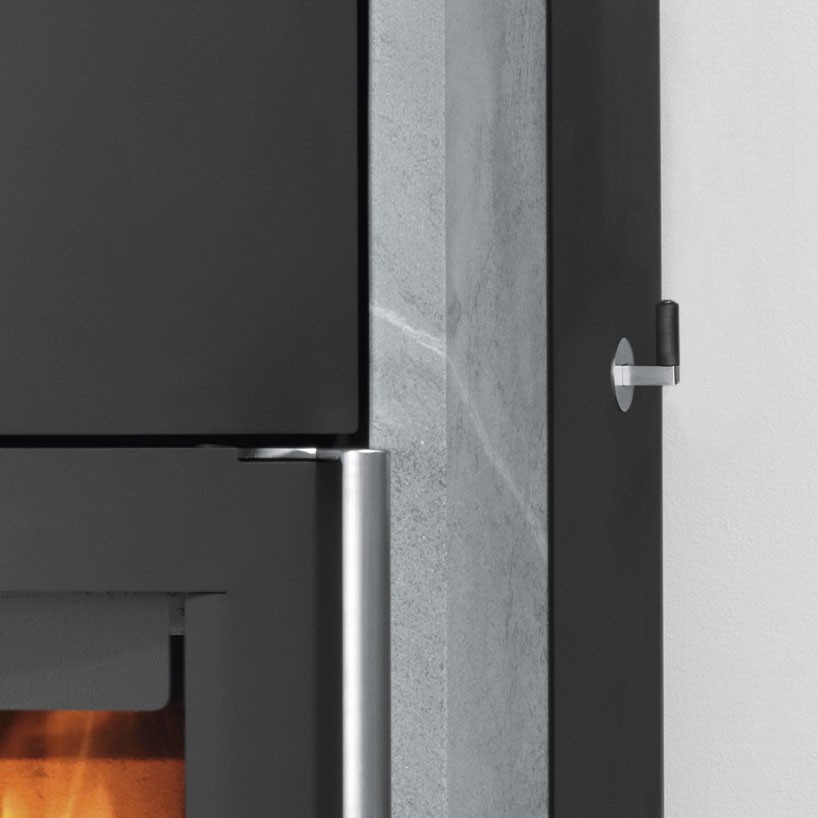

- Fine-adjustable combustion pusher enables operation with natural draught (without electrical or mechanical support)
- Flame pattern adjustable
- Window wash in both combustion chambers

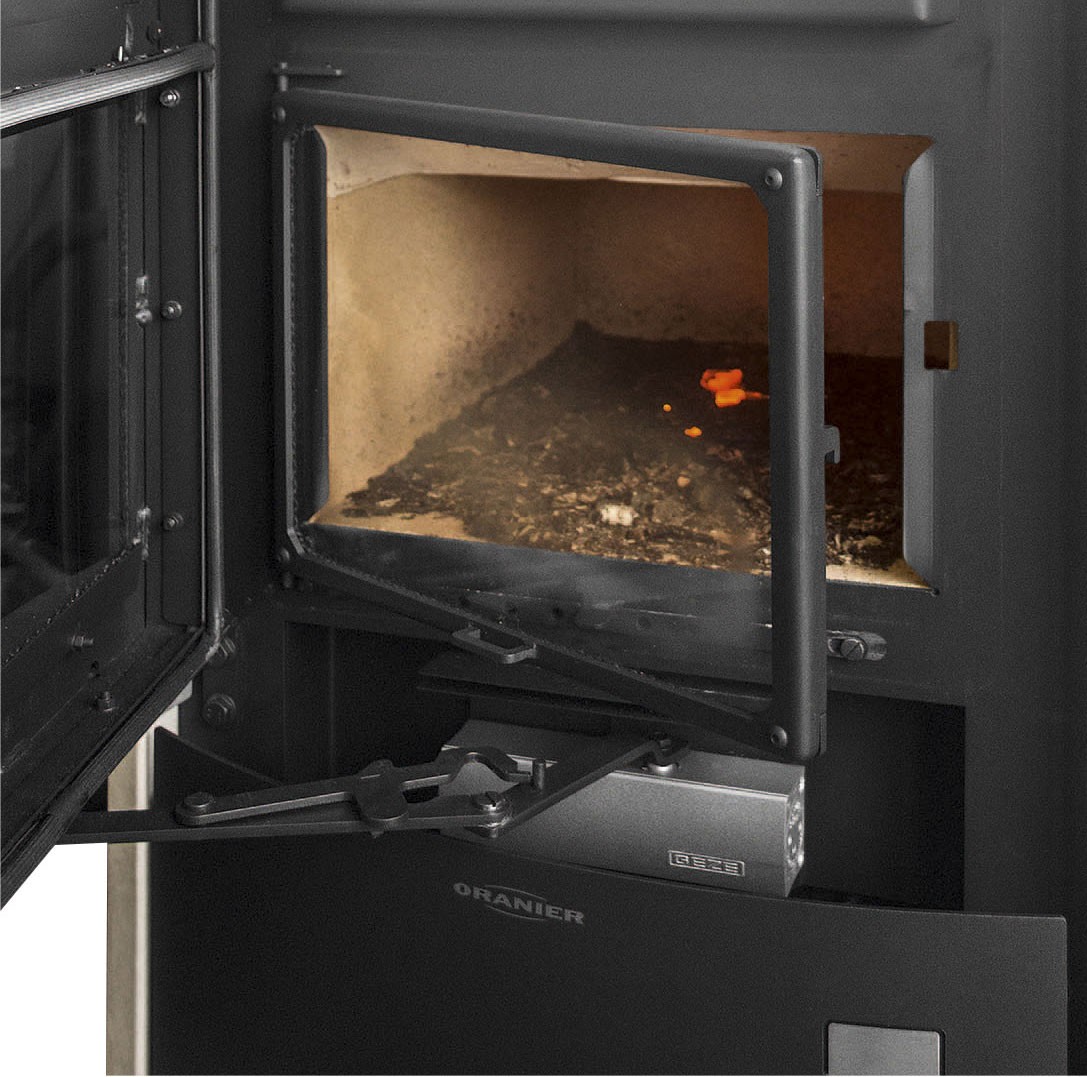

- Lower combustion chamber double-glazed
- Highly wear-resistant combustion chamber floor with refractory injection box
- ORANIER snap-lock-system
- Thermische Ablaufsicherung TAS
- Connection for external air supply
The connecting piece for external combustion air supply is not included in the scope of delivery.
Advantages:
- Operation from 12 Pa delivery pressure possible without any electrical oder mechanical support
- Condensate free operation in combination with common air-conditioning
- General metering requirement only in exceptional cases
Technical details
| Energy efficiency class | A+ |
| Connection possibility | top |
| Operation with external air supply | rear |
| Nominal heat output | 10,5 kW |
| Water-side performance | 7,5 kW |
| Room heating capacity up to | 200 m³ |
| Efficiency | >90 % |
| Height | 1455 mm |
| Width | 544 mm |
| Depth | 593 mm |
| Weight (incl. packaging) | 353 kg |
| Length of logs | 33 cm |
| Exhaust gas mass flow | 6,9 g/s |
| Exhaust temperature | 180 °C |
| Required delivery pressure | 0,12 mbar |
Accessories for your Wood gasification stove Hektos Aqua
Downloads
Order numbers
| Soapstone, corpus steel black | 787022 |
| Limestone cream, corpus steel black | 787087 |
Product highlights
External combustion air supply
In modern, more dense buildings with controlled ventilation systems, the combustion air must be supplied from the outside so there can not arise a vacuum in the living room. This requires a separate external air supply.
Please notice:
The simultaneous operation of a stove with solid fuels and controlled ventilations systems is only permittet, if the stove has an approval under building law as independent of ambient air stove according to DBIT. The stove has to be equiped with a security device e.g. low pressure warning device that has acces to the ventilation systems and is able to turn them off in case a vacuum arises.
Please find more information about DBIT in the users manual.
