Wall hood with headroom-design TANA
TANA90S1
TANA75S1
Wall hood with headroom-design, hood body and shaft
in pureBLACK, glass shade safety glass black, 90/75 cm
Features
- Click & Turn
- White LED display
- 3 normal settings, 1 intensive setting
- LED bar display of the power levels, white
- LED lighting
Convenience functions
- Glass edge lighting with ORANIER designLIGHT
- Automatic run-on function
- Grease filter cleaning indicator
- Metal grease filter dishwasher-safe
- Can also be installed without shaft
* According to DELEGATED REGULATION (EU) No 65/2014.
Technical details
| Design | Wall hood with headroom-design |
| Operating mode | Exhaust air/recirculating air |

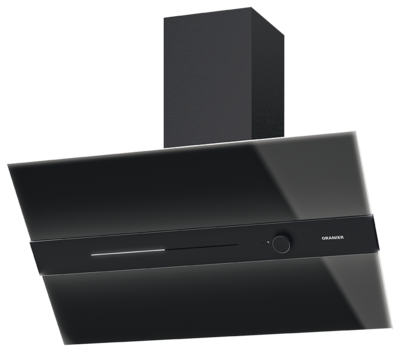

Technical details TANA90S1
| Energy efficiency class | A |
| Annual energy consumption | 61,6 kWh |
| Fan-Efficiency | A |
| Lighting-Efficiency | D |
| Grease filter Efficiency | B |
| Sound power min. normal level (db(A) re 1 pW) | 49 dB |
| Sound power max. normal level (db(A) re 1 pW) | 69 dB |
| Extraction rate to EN 61591 | |
| Exhaust air output min. normal level | 260 m³/h |
| Exhaust air output max. normal level | 615 m³/h |
| Exhaust air power intensive level | 760 m³/h |

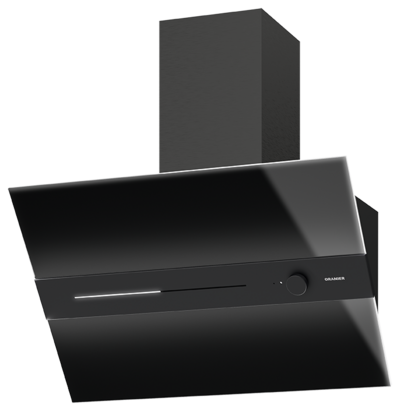

Technical details TANA75S1
| Energy efficiency class | A |
| Annual energy consumption | 56,5 kWh |
| Fan-Efficiency | A |
| Lighting-Efficiency | C |
| Grease filter Efficiency | B |
| Sound power min. normal level (db(A) re 1 pW) | 49 dB |
| Sound power max. normal level (db(A) re 1 pW) | 69 dB |
| Extraction rate to EN 61591 | |
| Exhaust air output min. normal level | 260 m³/h |
| Exhaust air output max. normal level | 615 m³/h |
| Exhaust air power intensive level | 760 m³/h |
