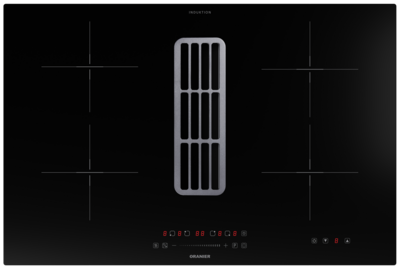

Cooktop extractor with induction KFA390

This model offers 4 installation options:

• Flush-mounted
• Mounted on the worktop
• Mounted on the worktop with
  side mouldings in stainless steel or pureBLACK
• Placed on the worktop with
  frame in stainless steel or pureBLACK

Equipment features hob

Features:

• Slider operation
• Red LED display
• 4 cooking zones
• 9 power levels
• 4-fold booster
• 4-way timer
• Pot size recognition

Convenience functions:

• Recognises the pot, recommends the cooking zone
• Pause function
• Keep warm level
• Childproof lock

Safety:

• Overflow protection
• Overheating protection
• Residual heat indicator
• Operating time limit

4 induction cooking zones:

• front left 190 mm: 1.5 kW
• rear left 170 mm: 2.3 kW
• front right 170 mm: 1.5 kW
• rear right 190 mm: 2.3 kW

Equipment features cooktop extractor (exhaust air/recirculating air)

Features:

• Touch control operation
• Red LED display
• 3 normal settings, 1 intensive setting

Convenience functions

• Automatic run-on function
• Grease filter cleaning indicator
• Child safety lock
• Extraction grille flush with glass
• Grease filter removable from above
• Professional activated charcoal filter removable from above

Safety:

• Capacity of the overflow tray approx. 0.5 litres
• Only one connection for hob and extractor unit
